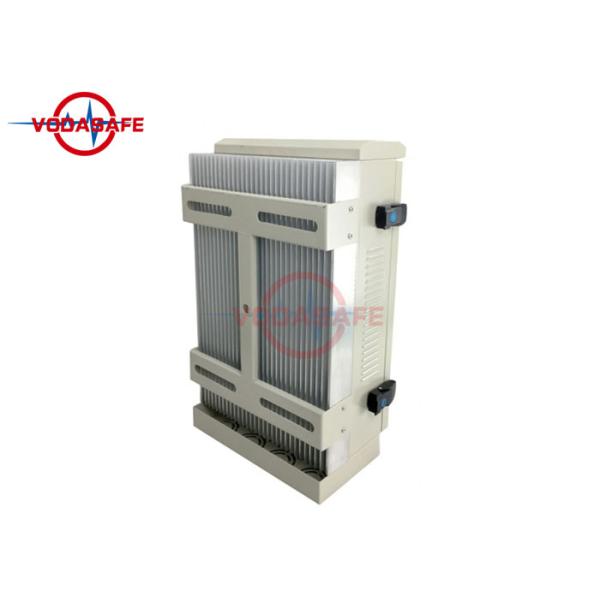

100m Shielding Range of Wireless Cell Phone Signal Jammer for Installation in Prisons
The 100m shielding range of wireless cell phone signal jammer is very suitable for installation in prisons, military and other places. Supporting long-term work, the silver aluminum housing with vents and built-in fan can quickly dissipate the heat generated by the shield. Only with sweep jamming technology, the shielding effect is very stable. With remote control, the remote control distance can reach 5-10m.
Features:
- Up to Six Frequency Bands.
- PLL Synthesized Signal Source
- Scew controls to adjust Output Power
- 10dBi Directional Antennas each Band
- Only Interferes w/Downlink Base Station Frequencies
- Slow Start-up Circuitry for Long Term Reliability
- Over Temperature and VSWR Protection
- Status/Alarm LEDs
- Fan Cooled Rack Enclosure with Casters
- 100-240VAC Power Supply Source
- Optional Status Monitoring Software for Client PC
Applicable place:
Jammers for prisons and other large sensitive locations such as military or governmental compounds. Homeland Security, Correctional Centers
Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants
Specification:
| Total Output power | 180W |
| Cover Radius | 50-100m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| Jamming type | Sweep Jamming |
| Antenna Type | Directional Antenna or Omini-directional antenna |
| Remote control on/off | (3-5m) |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) |
| Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
| Operating Temp | -20 to +50℃ |
| Storage Temp | -40 to +60℃ |
| Humidity | 5%-80% |
| Dimension(LXWXH) | 530 x 300x 200mm not include antennas |
| Weight | 25kg |
Order Information:
Vodasafe PJ630A:Jamming for 2/3/4G Cellphone/Wi-Fi2.4G/Bluetooth
Vodasafe PJ630B:Jamming for 2/3/4G Cellphone/GPSL1
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
Optional frequency:
1.CDMA/GSM:850-894MHz 30W;
2.GSM: 925-960 MHz 30W;
3.GSM/DCS:1805-1880MHz 10W;
4.3G/UMTS: 2110-2170MHz 10W;
5.4GLte: 790-826MHz 10W;
6.4G/WiMAX: 2620-2690MHz 10W;
7.WIFI2.4G :2400-2485MHz 10W;
8.4G2:2500-2570MHz 10W;
9.GPSL1:1570-1610 MHz 10W;
10.GPSL2:1200-1300MHz 10W;
11.GPSL3:1380-1400 MHz 10W;
12.WIF5.8G:5725-5850MHz 8W;
13.VHF:135-174MHz 30W;
14.UHF: 400-470MHz 30W;
15.RC433MHz: 433MHz 30W;
16.RC315MHz: 315 MHz 30W;
17:CDMA450MHz:450-470MHz 30W;
Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 90 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315MHz
